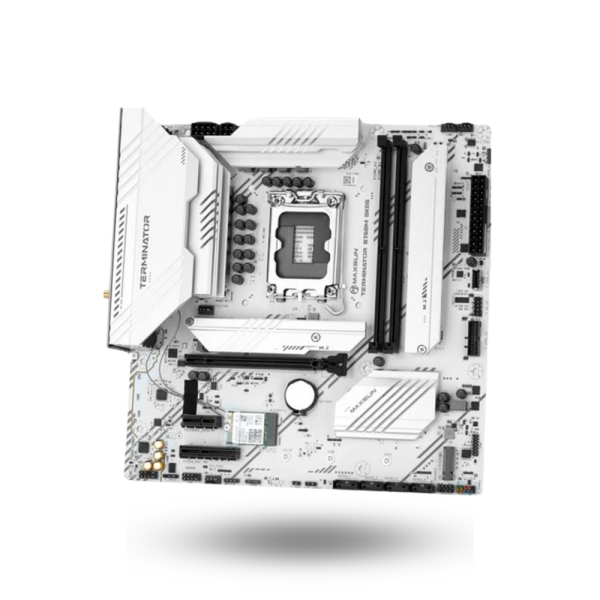

MAXSUN Terminator B760M GKD5 ICE (LGA1700, B760, DDR5, USB3.2 Type-C, SATA3)
Original price was: Rp2,385,000.00.Rp2,150,000.00Current price is: Rp2,150,000.00.
MAXSUN Terminator B760M GKD5 ICE (LGA1700, B760, DDR5, USB3.2 Type-C, SATA3)
Description
MAXSUN Terminator B760M GKD5 ICE (LGA1700, B760, DDR5, USB3.2 Type-C, SATA3)
- CPU
- Supports LGA1700 slots
Intel® 12th, 13th, and 14th processors
TDP: PL1 241W; PL2 253W
- CHIPSET
- Intel®B760 High-speed chipsets
- MEMORY
- 2 DIMM DDR5 memory slots (for single or dual memory slots, use the second and fourth slots first
Supports dual-channel memory technology
Support for 4800/5600/6400/7200/7600 / XMP/OC frequency of memory
- DISPLAY
- 1*DP1.4 interface, support up to 7680*4320@30Hz resolution
1*HDMI2.0 interface, the highest resolution support 4096×2160@60Hz
- EXTENSION INTERFACE
- 1*PCIEX16 5.0 slot
1* PCIEX4 3.0 open slot
- AUDIO
- Integrated REALTEK ALC897 sound card chip
- NETWORK
- Integrated REALTEK 8125B NIC chip (10/100/1000/2500Mbit)
1*on-board RJ45 port
Support network wake up
Supports PXE diskless boot and UEFI diskless boot
- STORAGE
- 3*M,2 slots (PCIE X4/X2 channel SSD only)
1*M.2_WIFI slot (CNVI network card only)
4* SATA3.0 ports
- USB
- Onboard rear ports: 2 USB3.2 GEN2 ports, 6 USB2.0 ports
In-board pins: 1 set (2) USB2.0 pins, 1 set (2) USB3.2 GEN1 pins,One USB3.2 Gen2x2 Type-C(20G) front interface
- FORM FACTOR
- ATX 245*245mm
