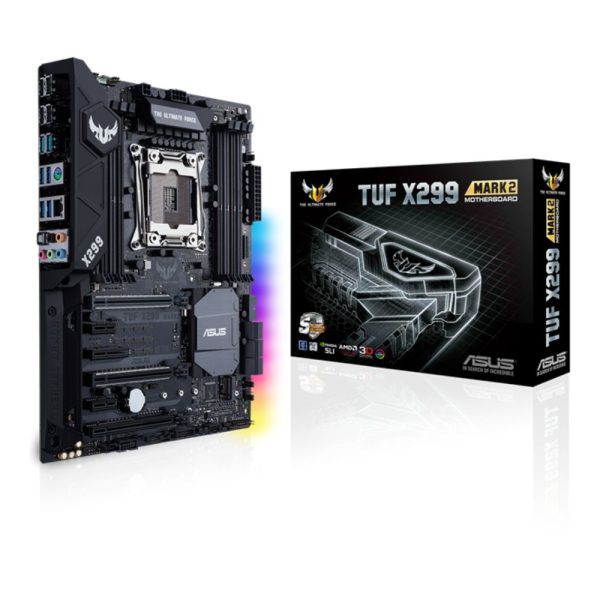

Motherboard Asus TUF X299 Mark 2 Limited Edition
Original price was: Rp6,800,000.00.Rp6,300,000.00Current price is: Rp6,300,000.00.
Motherboard Motherboard Asus TUF X299 Mark 2 Limited Edition
- Thermal Radar 3 – Designed to keep systems stable while overclocking, Thermal Radar 3 delivers complete system cooling control and temperature monitoring options
- Pro Clock II & T-Topology – Our Pro Clock II technology provides flexibility for fine-tuning system overclocks, while T-Topology enhances memory stability at higher frequencies
- TUF components — Certified military-grade caps, chokes & MOSFETs for tough duty
- Dual PCI Express® slots — Supports bridging of SLI graphics cards to deliver 1.5x greater transfer bandwidth
- ASUS Aura Sync: Synchronize RGB lighting effects across an ever-expanding ecosystem of Aura Sync-enabled products
Description
SPESIFIKASI Motherboard Asus TUF X299 Mark 2 Limited Edition
CPU
* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types,Intel® Socket 2066 Core™ X-Series Processors
Chipset
Intel® X299
Memori
8 x DIMM, Max. 128GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory,4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory,Intel® Core™ X-series Processors (4-core),* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,Intel® Core™ X-series Processors (6-core above),* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Dukungan Multi-GPU
Supports NVIDIA® Quad-GPU SLI™ Technology,Supports NVIDIA® 3-Way SLI™ Technology,Supports NVIDIA® 2-Way SLI™ Technology,Supports AMD Quad-GPU CrossFireX™ Technology,Supports AMD 3-Way CrossFireX™ Technology
Slot Ekspansi
1 x PCIe 3.0 x4 (max at x2 mode) *1,16-Lane CPU-,2 x PCIe 3.0/2.0 x16 (x16 or dual x8),3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8),2 x PCIe 3.0/2.0 x16 (x16, x16/x8),44-Lane CPU-,28-Lane CPU-,2 x PCIe 3.0/2.0 x1
Storage
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode),Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID,Intel® Rapid Storage Technology 15 support,Supports Intel® Smart Response Technology,Intel® X299 Chipset : ,Support Raid 0, 1, 5, 10,Intel® Optane™ Memory Ready,6 x SATA 6Gb/s port(s)
LAN
Intel® I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN,ASUS Turbo LAN Utility
Audio
Realtek® ALC S1220A8-Channel High Definition Audio CODEC,Separate layer for left and right track, ensuring both sound deliver equal quality,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs,- Impedance sense for front and rear headphone outputs,- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking,Audio Feature :,- Optical S/PDIF out port(s) at back panel,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Port USB
2 x USB 3.1 Gen 2 port(s) (Type-A),6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board),8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board),ASMedia® USB 3.1 Gen 2 controller :,Intel® X299 Chipset :
Fitur-Fitur Khusus
TUF Features:,- 7+1 Digital Phase Power Design,Ultimate COOL! Thermal Solution :,- TUF Thermal Armor,Thermal Radar 3,Safe & Stable! Guardian Angel :,- TUF ESD Guards 2,- TUF LANGuard,File Transfer,- Cloud GO!,TUF ENGINE! Power Design :,- TUF Components (Choke, Cap. & MOSFET; certified by military-standard),- File Transfer,OC Design – ASUS PRO Clock Technology,- MemOK!,- Multi-language BIOS,- ASUS Q-Shield,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED),- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface,- Aura Lighting Effects Synchronization with compatible ASUS ROG devices,AURA :,- Aura Lighting Control,ASUS Exclusive Features :,- AI Suite 3,- Ai Charger,- Turbo LAN,ASUS EZ DIY :,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode,ASUS Q-Design :,- ASUS Q-Slot,- ASUS Q-DIMM,- ASUS Q-Connector
Port I/O Belakang
2 x USB 3.1 Gen 2 Type-A,4 x USB 3.1 Gen 1,4 x USB 2.0,1 x PS/2 keyboard/mouse combo port(s),1 x LAN (RJ45) port(s),1 x Optical S/PDIF out,5 x Audio jack(s)
I/O Internal
1 x M.2_FAN connector (),1 x VROC_HW_Key (),2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s),2 x 3D Mount screw port(s),1 x CPU_OV jumper,1 x System panel(s) (Q-Connector),1 x MemOK! button(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x Thunderbolt header(s),1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode),1 x 5-pin EXT_FAN(Extension Fan) connector,1 x H_AMP fan connector,1 x AAFP connector,1 x CPU Fan connector(s),1 x CPU OPT Fan connector(s),2 x Chassis Fan connector(s),1 x AIO_PUMP connector,1 x W_PUMP+ connector,1 x Thermal sensor connector(s),1 x COM port(s) connector(s),6 x SATA 6Gb/s connector(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x 4-pin ATX 12V Power connector(s),1 x Clear CMOS jumper(s)
Aksesori
1 x TUF 5 Year Warranty manual(s) (by region),1 x TUF Inside sticker(s)(white),ASUS Q-Shield,1 x Vertical M.2 bracket set,1 x SLI HB BRIDGE(2-WAY-M),4 x SATA 6Gb/s cable(s),1 x Q-Connector,1 x TUF Certification card(s),User´s manual,1 x M.2 Screw Package,1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
Kemampuan Manajemen
WfM 2.0, DMI 3.0, WOL by PME, PXE
Disc Pendukung
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Sistem Operasi
Windows® 10 64-bit
