General data

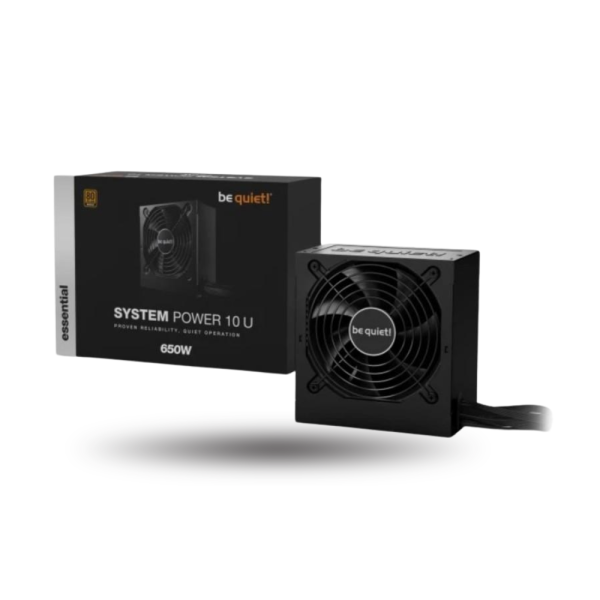

Model System Power 10 U 650W
Continuous power (W) 650
Peak power (W) –
Form factor Version 2.52
Form factor EPS 12V Version 2.92
Topology DC/DC
Digitally controlled –
Voltage (Vac) 100 – 240
Frequency (Hz) 50 – 60
Input current (A) 10 / 5
Power factor at 100% load >0.95
Modern standby ✓
Power consumption in standby (W) <0.15
Average life time (h / 25°C) > 100,000
Operating temperature up to (°C) 40

Fan and cooling technology
Fan temperature-controlled quality fan
Fan size (mm) 120
Bearing technology Sleeve
Motor technology 4-pole fan motor
Max. fan speed (rpm) 2100
dB(A) at 10% load –
dB(A) at 20% load 8.2
dB(A) at 50% load 11.3
dB(A) at 100% load 30.9

Output
Multi-rail operation (12V rails) 1
12V single rail operation –
Overclocking key –
+3.3V (A) 20
+5V (A) 20
+12V1 (A) 54.17
+12V2 (A) –
+12V3 (A) –
+12V4 (A) –
+12V5 (A) –
+12V6 (A) –
-12V (A) 0.3
+5Vsb (A) 3
Max. combined power 12V (W) 650
Max. combined power 12VHPWR (W) 0
Max. combined power 3.3V + 5V (W) 120
Hold-up time at 100% load (ms) 17 (@75%)
Power good signal (ms) 100 – 150

Cables and connectors
Modular cables –
Sleeved cables ✓
Flat cables ✓
Maximum cable length (cm) 79
Cable length to motherboard (cm) 55
No. of cables 7
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) –
P4 (CPU) 1
12VHPWR cables 0
PCI-e 6+2-pin (GPU) 2
PCI-e 6-pin (GPU) –
SATA 6
PATA 1
FDD (Floppy) –

Protection
OTP (over temperature protection) ✓
OCP (over current protection) ✓
OPP (over power protection) ✓
SCP (short circuit protection) ✓
OVP (over Voltage protection) ✓
UVP (under Voltage protection) ✓
SIP (Surge & Inrush Protection) –
