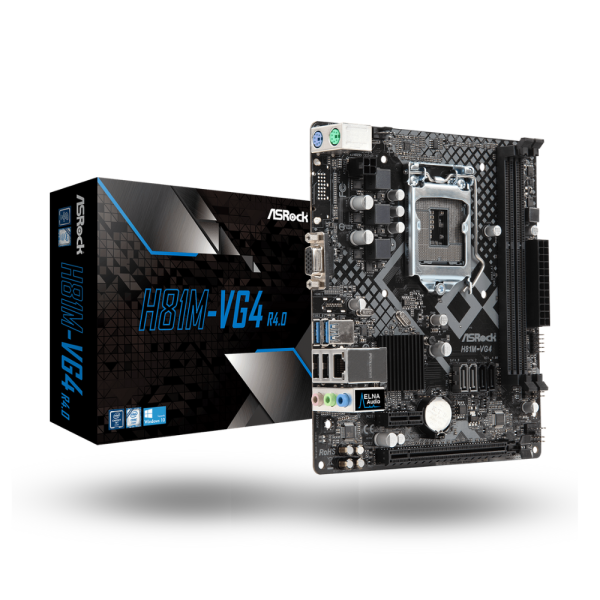

ASRock H81M-VG4 R4.0 (LGA1150, H81, DDR3)
Original price was: Rp1,000,000.00.Rp775,000.00Current price is: Rp775,000.00.
ASRock H81M-VG4 R4.0 (LGA1150, H81, DDR3)
Description
ASRock H81M-VG4 R4.0 (LGA1150, H81, DDR3)
-
CPU– Supports New 4th and 4th Generation Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors (Socket 1150)
– Supports Intel® Turbo Boost 2.0 Technology -
Chipset– Intel® H81
-
Memory– Dual Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L DIMM Slots
– Supports DDR3/DDR3L 1600 / 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. -
BIOS– 32Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 1.1 Compliant wake up events
– SMBIOS 2.3.1 support
– CPU, DRAM Voltage multi-adjustment -
Graphics– Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600*
– Pixel Shader 5.0, DirectX 11.1
– Max. shared memory 1024MB*
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**The size of maximum shared memory may vary from different operating systems.
-
Audio– 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
– Supports Surge Protection -
LAN– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE -
Slots– 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)
– 1 x PCI Express 2.0 x1 Slot -
Storage– 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
– 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug -
Connector– 1 x Chassis Intrusion and Speaker Header
– 1 x TPM Header
– 1 x SPI TPM Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) -
Rear Panel I/O– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jack: Line in / Front Speaker / Microphone -
Unique FeatureSoftware
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast RAM
– ASRock Fast Boot (Fast Boot, Restart to UEFI)
* These utilities can be downloaded from
ASRock Live Update & APP Shop. UEFI
– ASRock Interactive UEFI
– ASRock UEFI Guide
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock UEFI Tech Service
– ASRock Easy Driver Installer -
Accessories– I/O Shield
– 2 x SATA Data Cables -
Hardware Monitor– CPU/Chassis temperature sensing
– CPU/Chassis Tachometer
– CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU/Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore -
Form Factor– Micro ATX Form Factor: 7.5-in x 6.7-in, 19.1 cm x 17.0 cm
– Solid Capacitor design -
OS– Microsoft Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
-
Certifications– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
