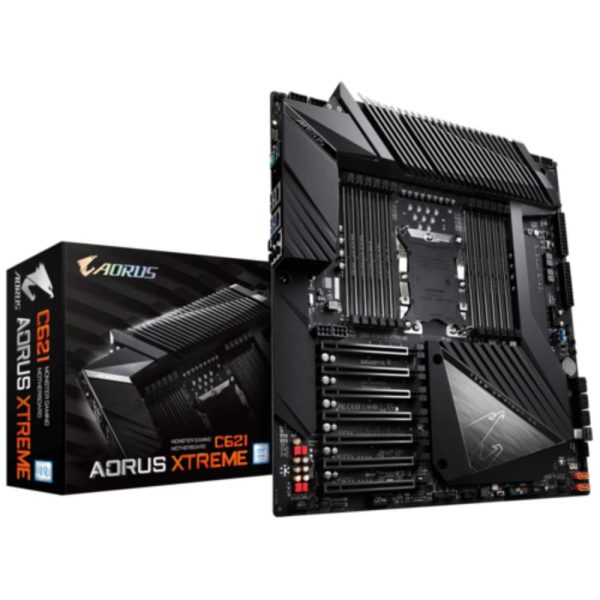

Motherboard Gigabyte C621 AORUS Xtreme 7x Full Lenght PCIe 3.0 Slot

Motherboard Motherboard Gigabyte C621 AORUS Xtreme 7x Full Lenght PCIe 3.0 Slot

Supports W-3175X Processor @ All Cores 5GHz+ (Overclocking)
6-Channel Non-ECC Unbuffered DDR4, 12 UDIMMs
32-Phases 1600A IR All Digital VRM Solution with PowIRstage
7-slots Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
Dual Intel i210AT + i219LM GbE with high ESD Protection
Ultra-Fast U.2 with PCIe Gen3 x4 interface
Supports 2 SATA Disk on Modules for Storage Expansion
Immersive Gaming ViBes with ALC1220-VB and WIMA audio capacitors
Lightning-Fast Intel^® Thunderbolt™ 3 AIC Support

Description

SPESIFIKASI Motherboard Gigabyte C621 AORUS Xtreme 7x Full Lenght PCIe 3.0 Slot

Prosesor
1. Support for Intel^® Xeon^® W-3175X Scalable processor in the LGA3647 Socket P (Narrow)
2. L3 cache varies with CPU
(Please refer to “CPU Support List” for more information.)
Chipset
1. Intel^® C621 Chipset
Memori
1. 12 x DDR4 DIMM sockets supporting up to 192 GB of system memory
2. 6 channel memory architecture
3. Support for DDR4 4200(O.C.) / 4000(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz
4. Support for ECC Registered DIMM memory modules
5. Support for ECC Un-buffered DIMM memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Audio
1. Realtek^® ALC1220-VB codec
  * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. 2 x Intel^® GbE LAN chips (10/100/1000 Mbit)
Slot Tambahan
1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/2)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.
2. 4 x PCI Express x16 slots, running at x8 (PCIEX8_1/2/3/4)
  * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_3 with PCIEX16_2. When PCIEX8_1/PCIEX8_3 is populated, PCIEX16_1/PCIEX16_2 operates at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Teknologi Multi Grafis
1. Support for NVIDIA^® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA^® SLI™ technologies
2. Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
Antarmuka Penyimpanan
Chipset:
1. 8 x SATA 6Gb/s connectors
2. Support for RAID 0, RAID 1, RAID 5, and RAID 10
3. 1 x U.2 connector
USB
Chipset:
1. 5 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header, 1 onboard)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Konektor I/O Internal
1. 2 x 24-pin ATX main power connectors
2. 4 x 8-pin ATX 12V power connectors
3. 2 x OC_PEG power connectors
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x addressable LED strip power select jumpers
10. 2 x RGB LED strip headers
11. 8 x SATA 6Gb/s connectors
12. 1 x U.2 connector
13. 2 x SATA power headers
14. 2 x SATA detection headers
15. 1 x power information detection header
16. 1 x front panel header
17. 1 x front panel audio header
18. 1 x S/PDIF Out header
19. 1 x USB 3.1 Gen 1 header
20. 1 x USB 3.1 Gen 1 port
21. 1 x USB 2.0/1.1 header
22. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
23. 1 x Intel^® VROC Upgrade Key header
24. 1 x serial port header
25. 1 x Clear CMOS jumper
26. 1 x reset button
27. 1 x power button
28. 2 x temperature sensor headers
29. 1 x BIOS switch
30. 1 x buzzer
Konektor Panel Belakang
1. 1 x PS/2 keyboard/mouse port
2. 4 x USB 2.0/1.1 ports
3. 2 x USB 3.1 Gen 1 ports
4. 2 x RJ-45 ports
5. 1 x optical S/PDIF Out connector
6. 5 x audio jacks
Pengontrol I/O
1. iTE^® I/O Controller Chip
Pengawasan Hardware
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 2 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Fitur Unik
1. Support for @BIOS
2. Support for Q-Flash
3. Support for RGB Fusion
4. Support for System Information Viewer
Paket Sofware
1. Norton^® Internet Security (OEM version)
Sistem Operasi
1. Support for Windows 10 64-bit
