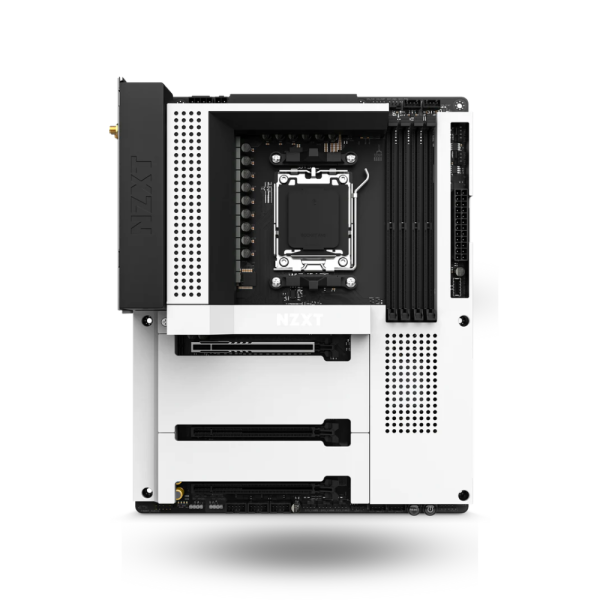

NZXT N7 B650E WIFI – Matte White (AM5, AMD B650, DDR5, USB3.2 Type-C, SATA3)
Original price was: Rp5,500,000.00.Rp5,295,000.00Current price is: Rp5,295,000.00.
NZXT N7 B650E WIFI – Matte White (AM5, AMD B650, DDR5, USB3.2 Type-C, SATA3)
Description
NZXT N7 B650E WIFI – Matte White (AM5, AMD B650, DDR5, USB3.2 Type-C, SATA3)
Supports AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Processors
Supported
AMD
B650E
DIMM Slots
4, DDR5 only
Max Memory Support
128GB
Memory Architecture
Dual-Channel
OC Frequency
DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC)
Extreme Memory Profile (XMP)
Supported
EXTended Profiles for Overclocking (EXPO)
Supported
PCIe 5.0 ×16 slot (PCIEX16_1)
1 (Supports NVMe SSD as boot disks)
PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3)
2 (Supports NVMe SSD as boot disks)
M.2 Socket (Key E)
1 (supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module)
Integrated AMD RDNA™ 2 graphics
Supported
HDMI 2.1 TMD Compatible
1
HDR
Supported
HDCP 2.3
max. resolution up to 4K 60Hz
M.2_1
Type 2242/2260/2280 (PCIe 5.0 ×4 mode)
M.2_2
Type 2242/2260/2280 (PCIe 4.0 ×4 mode)
M.2_3
Type 2242/2260/2280 (PCIe 4.0 ×2 mode)
SATA 6Gb/s ports
4
RAID for SATA
0/1/10
RAID for M.2 NVMe
0/1/10
NVMe SSD as boot disks
Supported
Realtek®
RTL8125BG 2.5G LAN
802.11ax Wi-Fi 6E Module
Supported
Bluetooth
V5.2
Realtek®
ALC1220 Codec
Wireless antenna SMA connectors
2
HDMI™ port
1
USB 2.0
2
USB 3.2 Gen 2 Type-C port
1
USB 3.2 Gen 2 ports
2
USB 3.2 Gen 1 ports
4
Clear CMOS button
1
BIOS Flashback button
1
LAN (RJ45) port
1
Audio jacks
5
Optical S/PDIF Out port
1
24-pin ATX power connector
1
8+4-pin ATX 12V power connector
1
4-pin CPU_FAN connector
1
4-pin AIO_PUMP connector
1
4-pin SYS_FAN connectors
5
NZXT RGB LED connectors
4
5V ARGB LED connector
2
USB 2.0 header
3 (Up to 6 USB 2.0 ports)
USB 3.2 Gen1 header
2 (Up to 4 USB 3.2 Gen 1 ports)
USB 3.2 Gen2x2 front panel header
1 (For USB Type-C)
Front panel audio connector
1
Power button
1
Reset button
1
POST LEDs
4
System Requirements
NZXT CAM software requires Microsoft Windows® 11/10 operating system.
Form Factor
ATX
Warranty
3 years
Certifications
FCC, CE, WHQL, ErP/EuP Ready
Model Number (White)
N7-B65XT-W1
Model Number (Black)
N7-B65XT-B1
UPC (White)
810074842877
UPC (Black)
810074842884
EAN (White)
5056547202815
EAN (Black)
5056547202822
Support Contact Number
