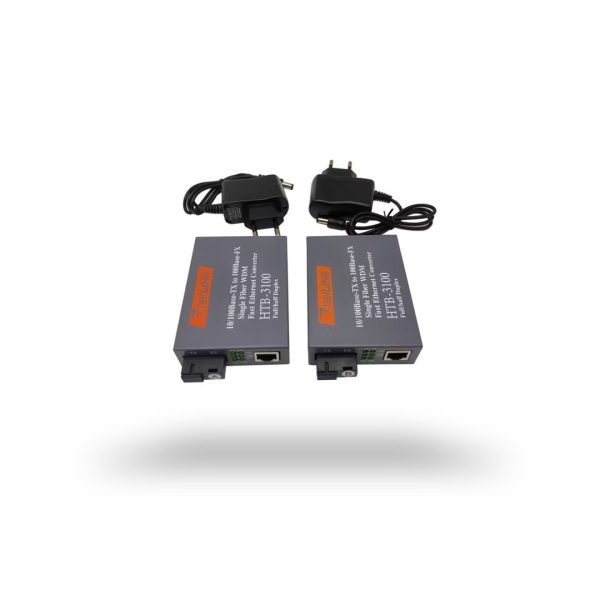

Name: Optical Media Converter HTB-3100 A+B Fiber RJ45 Netlink 1 Pasang 25KM READY STOCK
SKU: 19342
Availability: InStock

Optical Media Converter HTB-3100 A+B Fiber RJ45 Netlink 1 Pasang 25KM READY STOCK

Category: Fiber

Description

1 pair = 1 pasang = 1 set A + B = 2 pcs = 2 unit 1 pasang = htb3100A + htb3100B + 2 adaptor High quality 10/100Mbps

Ethernet to Fiber Optic Media Converter 25KM SC (1 Pasang) Features: –An RJ45 ports and a single-fiber SC optical port,to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic); –Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled; –Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards; –Has 10M/100M adaptive capacity; –Ethernet interface can adaptively direct line / crossover cable connection; –Support full / half duplex mode; –Support IEEE802.3X duplex flow control and half-duplex backpressure flow control; –1916 Byte support large data frame ( optional ); –Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction; –UTP up to 100 meters; longest 100 km single-mode fiber; –Six LED indicators: Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col;easy to monitor the working status of the transceiver and determine the cause of the fault; –Ambient temperature: 0-70 degree –Humidity: 5% to 90% Fiber Optic Parameters: Fiber optic type: Single mode Connector type: SC Transmit Wave length: 1310/1550nm Transmission distance: 25 Km Min TX PWR: -9.0 dBm Max TX PWR: -3 dBm Sensitivity: -31.0 dBm Link Budget: 22.0 dBm

HARGA 1 SET YA A+B

NOTE : Untuk ketersediaan STOCK harap ditanyakan terlebih dahulu ( Terima Kasih ) Selamat Berbelanja !!!
